Overflow Woven Fabric Dyeing Machine Adjustable With PLC Based Automation

Introduction

The AS631 dyeing machine is primarily designed for processing woven fabrics, including natural and synthetic fibers, blended fibers such as T/C, T/R, and T/W, as well as high value-added microfibers and composite fibers. With its large-capacity design, the machine ensures smooth operation for both lightweight and heavyweight fabrics while maintaining an efficient low liquor ratio ranging from 1:6 to 1:8. The system incorporates a large-flow nozzle that works in conjunction with a high-lift main pump to enhance uniform dyeing effects through high-speed circulation. For improved operational efficiency, the machine features a special guide cloth device at the tail section that optimizes fabric arrangement and minimizes production stoppages, ensuring continuous and stable running throughout the dyeing process.

Technical Parameters

-Maximum fabric speed: 600-700 m/min
-Maximum working pressure: Mpa 0.4

-Maximum operating temperature: 135℃
-Heating rate: 20℃~130℃ average 5℃/min
(dry saturated steam pressure at 0.7Mpa)
-Cooling rate: 130℃~80℃ average 2.5℃/min
(cooling water pressure at 0.3Mpa, cooling water temperature: 5℃~10℃)

-Liquor Ratio: 1:5-1:8

Model and Specifications

Overflow Woven Fabric Dyeing Machine

Overflow high pressure dyeing machine

Adjustable Woven Fabric Dyeing Machine

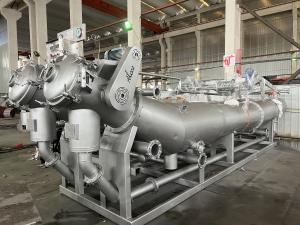

Overflow Woven Fabric Dyeing Machine Adjustable With PLC Based Automation Images
